If you test tensile strength in your lab — whether for plastic, rubber, leather, or any polymer material — you need a dumbbell cutting die. There is no way around it.
A specimen cutting die is the precision-shaped tool that punches or cuts your raw material sheet into the exact specimen dimensions required by your testing standard. Get the die right, and your tensile test results are reliable, repeatable, and auditable. Get it wrong — wrong shape, wrong dimensions, dull edges, cheap steel — and every single tensile test result your lab produces becomes questionable.

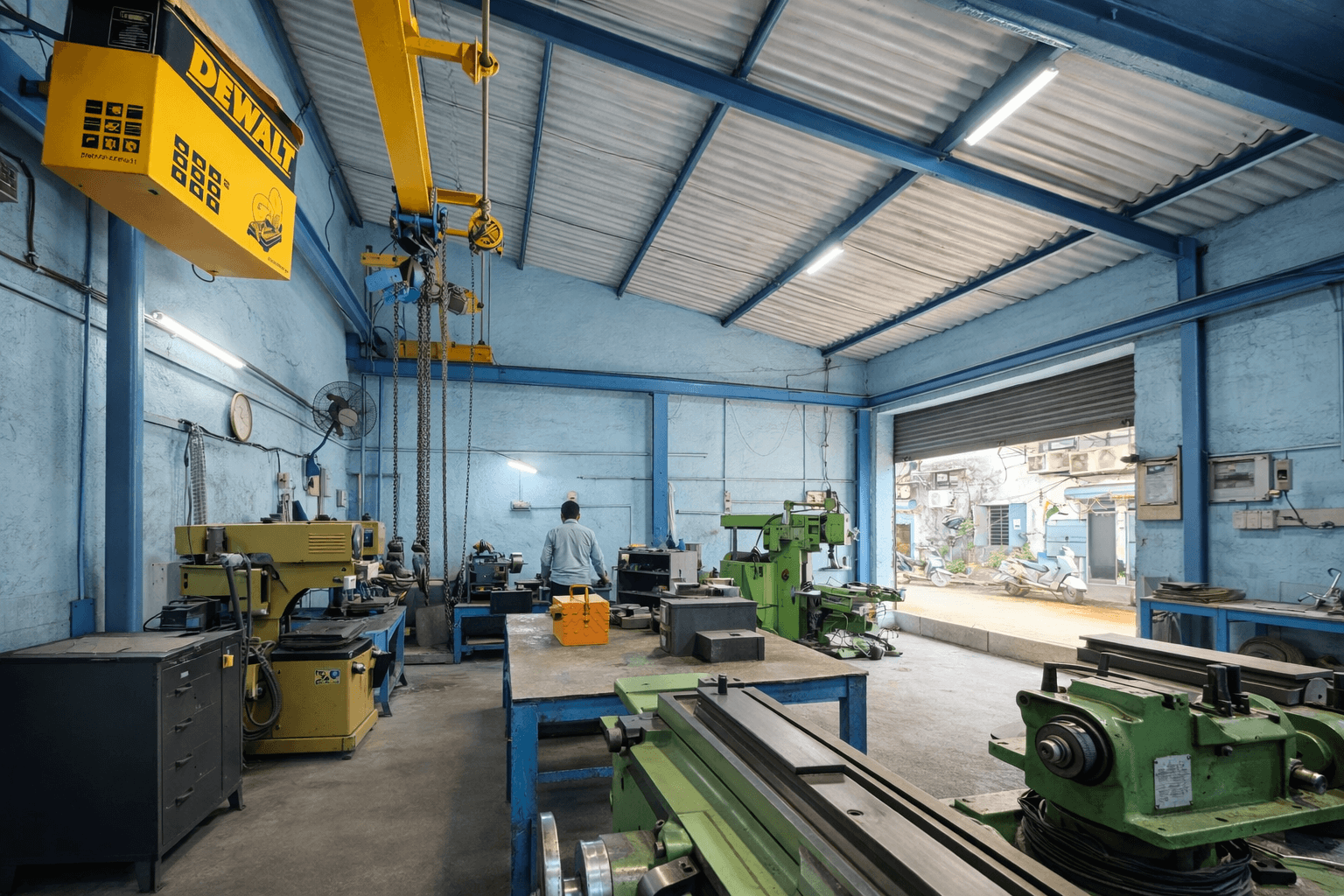

I have been manufacturing dumbbell cutting dies at our facility in Thane for several years now, and the questions I get from buyers are almost always the same: Which die do I need for my standard? What are the exact dimensions? How long does a die last? Can you make a custom size? This blog answers all of those questions in one place.
If you are setting up a new QC lab, replacing worn-out dies, or just trying to understand why your tensile test results are inconsistent, keep reading. I have included the complete dumbbell die dimensions tables for ASTM, ISO, and BIS standards below — you can bookmark this page as a reference.
What Is a Dumbbell Cutting Die?
A dumbbell cutting die is a hardened steel tool shaped like a dumbbell — wide at both ends, narrow in the middle. When pressed into a flat sheet of material using a specimen cutting press, it cuts out a specimen in that exact shape. The narrow middle section is called the gauge length, and this is where the specimen will stretch and eventually break during the tensile test.
You might also hear these called dog-bone cutters, tensile specimen dies, or simply specimen cutting dies. The shape and terminology vary slightly between standards, but the concept is the same: a precision cutting tool that creates a standardised test specimen from your material.
The die itself is not a machine. It is an accessory — a tool that you insert into a cutting press (manual press, pneumatic press, or hydraulic) to punch out specimens. Think of it like a cookie cutter, except it needs to be precise to within fractions of a millimetre, and the edges need to be sharp enough to cut cleanly without leaving burrs.
Why the Dumbbell Shape? The Engineering Behind It
This is something most buyers never think about, but it matters. The dumbbell shape is not arbitrary. It is specifically engineered to ensure that during a tensile test, the specimen fails in the narrow gauge section — not at the grips.
Here is why this matters. When you clamp a specimen into a Universal Testing Machine, the grips exert a compressive force on the wide ends. If the specimen were a simple rectangular strip, the stress concentration at the grip edges would cause it to break right at the clamp, not in the middle. That would give you a meaningless result because you would be measuring the grip’s effect, not the material’s actual tensile strength.
The wider ends of the dumbbell absorb the grip pressure without creating stress concentrations. All the stretching and deformation happens in the narrow gauge section. When the specimen breaks, it breaks where the material is under pure uniaxial tension — which is exactly what the test is designed to measure.
This is also why the transition from wide to narrow must be a smooth radius, not a sharp corner. A sharp transition would create a stress concentration point and cause premature failure. The testing standards specify this radius precisely for exactly this reason.
Standard Dimensions: The Complete Reference Guide
This is the section most buyers are looking for, so I am going to be thorough. Below you will find the exact specimen dimensions for the most commonly used tensile testing standards in Indian manufacturing. I recommend bookmarking this page — you will refer back to it more often than you think.
ASTM D638: Standard Test Method for Tensile Properties of Plastics
ASTM D638 is the most widely used standard for plastic tensile testing globally. It defines five different specimen types. In India, Type I and Type IV are the most commonly used. Type I is the default for most injection-moulded and extruded plastics. Type IV is used for thinner materials like films and sheets under 4mm.
Parameter | Type I | Type II | Type IV | Type V |
Overall Length (mm) | 165 | 183 | 115 | 63.5 |
Gauge Length (mm) | 50 | 50 | 33 | 7.62 |
Width — Narrow (mm) | 13 | 6 | 6 | 3.18 |
Width — Ends (mm) | 19 | 19 | 19 | 9.53 |
Thickness (mm) | ≤7 | ≤7 | ≤4 | ≤4 |
Radius of Fillet (mm) | 76 | 76 | 14 | 12.7 |
💡 Santhosh’s Tip: If your customer’s specification sheet simply says “ASTM D638” without mentioning the type, assume Type I. If you are testing films or sheets under 4mm thick, use Type IV. I have seen labs order Type I dies for film testing and then wonder why the specimens keep slipping from the grips — the narrow section is too wide for thin film material. Always match the die type to your material thickness.
ASTM D412: Standard Test Method for Rubber and Thermoplastic Elastomers
ASTM D412 is the standard for rubber tensile testing. It defines several die types, with Die C being the most commonly used worldwide. In Indian rubber factories and testing labs, Die C accounts for about 80% of the dumbbell dies I supply.
Parameter | Die A | Die B | Die C | Die D |
Overall Length (mm) | 115 | 100 | 115 | 115 |
Gauge Length (mm) | 33 | 25 | 33 | 33 |
Width — Narrow (mm) | 6 | 6 | 6 | 3 |
Width — Ends (mm) | 25 | 11 | 25 | 14 |
Inner Radius (mm) | 14 | 11 | 14 | 14 |
Outer Radius (mm) | 25 | 11 | 25 | 25 |
💡 Santhosh’s Tip: Die C is the workhorse of rubber testing. If someone asks me for a dumbbell die for rubber without specifying the type, I always confirm whether they need Die C — and nine times out of ten, they do. Die D is used when only a small amount of material is available.
⚠️ Important: Do NOT use an ASTM D638 die for rubber testing, and do not use an ASTM D412 die for rigid plastic testing. The dimensions are different, and technically, the test is invalid if the specimen does not conform to the correct standard. I have seen this mistake more often than you would expect — especially in labs that test both plastic and rubber. You need separate dies.
ISO 37: Rubber — Determination of Tensile Stress-Strain Properties
ISO 37 is the international equivalent of ASTM D412 for rubber testing. It is commonly required by export customers and European buyers.
Parameter | Type 1 | Type 2 | Type 3 |
Overall Length (mm) | 115 | 75 | 50 |
Gauge Length (mm) | 25 | 20 | 10 |
Width — Narrow (mm) | 6.2 | 4 | 4 |
Width — Ends (mm) | 25 | 12.5 | 8.5 |
Thickness (mm) | 2.0 ± 0.2 | 2.0 ± 0.2 | 1.0 ± 0.1 |
💡 Santhosh’s Tip: ISO 37 Type 1 is dimensionally close to ASTM D412 Die C, but they are not identical. The gauge length differs (25mm vs 33mm). If your customer specifies ISO 37, do not assume your ASTM D412 die will work. Check the dimensions. A few millimetres of difference can fail an audit.
ISO 527: Plastics — Determination of Tensile Properties
ISO 527 is the international equivalent of ASTM D638 for plastic tensile testing. European and Asian export markets often specify this.
Parameter | Type 1A | Type 1B |
Overall Length (mm) | 170 | 170 |
Gauge Length (mm) | 75 | 50 |
Width — Narrow (mm) | 10 | 10 |
Width — Ends (mm) | 20 | 20 |
Thickness (mm) | 4.0 ± 0.2 | 4.0 ± 0.2 |
Fillet Radius (mm) | 20–25 | 20–25 |
BIS / IS Equivalents for Indian Domestic Market
For manufacturers selling exclusively in the Indian domestic market, the Bureau of Indian Standards has adopted several international standards:
- IS 2508: Methods of testing vulcanised rubbers — tensile testing follows ASTM D412 / ISO 37 methodology
- IS 2530: Commonly associated with MFI testing, but cross-references specimen preparation for plastics
- IS 13360 (Part 5/Section 7): Tensile properties of plastics — equivalent to ISO 527 / ASTM D638
In practice, most BIS specifications cross-reference ASTM or ISO specimen dimensions. If you are preparing for a BIS audit, verify which IS standard your product falls under and confirm the specimen dimensions match one of the tables above. If you also test Melt Flow Index under BIS, IS 2530 applies to that process separately.
Die Material: Why Steel Quality Matters More Than You Think
This is where cheap dies and quality dies diverge, and it is the single biggest factor that determines how long your die lasts and how clean your specimens are.
A good dumbbell cutting die is made from hardened alloy tool steel, heat-treated to a hardness of HRC 58–62. At this hardness, the cutting edge stays sharp through hundreds of cuts without deforming or rounding off. The cutting edges are ground and polished to a mirror finish, and the inner surfaces of the narrow section are perpendicular to the cutting plane to a depth of at least 5mm. This ensures that the specimen edges are clean, smooth, and free from micro-burrs that would affect test results.
A cheap die is often made from mild steel or low-carbon steel, with little or no heat treatment. The cutting edge starts sharp enough, but within 50–100 cuts, it begins to round off. Rounded edges do not cut — they tear. And torn specimen edges create stress concentration points that cause premature failure in the tensile test. The result? Your material appears weaker than it actually is.
At Finetech, we manufacture our dies from alloy tool steel, hardened and tempered to HRC 58–62. Every die is zinc plated for corrosion resistance. The cutting edges are precision-ground and inspected before dispatch. This is not a component we outsource — we make them in our own facility in Wagle Estate, Thane.
When to Replace Your Cutting Die: Signs of Wear
Every die has a finite life. How long it lasts depends on the material you are cutting, how often you use it, and whether you are using it with a proper cutting press or hammering it by hand.
Here are the signs that your die needs replacement:
- Visible burrs on specimen edges: Hold the cut specimen up to a light source. If you see tiny raised edges or rough fibres, the die is dull. This is the most common sign and the most often ignored.
- Inconsistent specimen dimensions: Measure 10 consecutive specimens with a micrometer. If the narrow section width varies by more than 0.2mm, the die has lost accuracy.
- Increased cutting force needed: If your press operator needs significantly more force, or a pneumatic press struggles with previously easy material, the edges are rounding.
- Visible nicks or chips: Any edge damage is an immediate replacement trigger.
- Specimens tearing instead of cutting: If edges look torn or fibrous rather than clean-cut, the die is done.
As a general rule, I recommend inspecting dies every 500 cuts and considering replacement every 800–1,000 cuts. For abrasive materials like fibre-reinforced composites, replacement may be needed at 200–300 cuts.
💡 Insider Tip: Keep a set of reference specimens cut with a brand-new die. Store them in a labelled bag. When you suspect die wear, cut a new specimen and compare side-by-side. The difference is usually obvious to the naked eye.
Manual Press vs Pneumatic Press: Which One for Dumbbell Dies?
A dumbbell die is useless without a press to drive it through the material. The two options most labs use are a manual press (handwheel-operated) and a pneumatic press (air-powered).
For low-volume testing — fewer than 10 specimens per day — a manual press works perfectly well. It is affordable, requires no compressed air, and takes up minimal bench space. Our manual presses generate up to 10 kN of cutting force, which is enough for rubber sheets up to about 6mm thick and most plastic sheets.
For higher volumes, thicker materials, or labs where operator fatigue is a concern, a pneumatic press is the better choice. Pneumatic presses generate 15–50 kN of force with a single button press, and they cut cleanly through materials up to 15mm thick. They also improve consistency because every cut has the same force.
We manufacture both types at Finetech. The dies are interchangeable between our manual and pneumatic presses, so if you start with a manual press and later upgrade to pneumatic, your existing dies work without any modification.
Custom Dies: When Standard Sizes Do Not Fit Your Application
Standard dies cover about 90% of testing requirements. But I get calls regularly from R&D labs and manufacturers who need something non-standard.
This is where buying from a manufacturer rather than a trader makes a real difference.
A few months ago, a chemical company in Mumbai contacted us. Their R&D team had developed a new elastomer compound and needed a dumbbell die with a gauge length of 40mm and a narrow width of 8mm — dimensions that do not exist in any published standard. They had already contacted three other suppliers. All three said: “It is not available in standard.”
We studied their requirement, designed the die in CAD, manufactured it from the same alloy tool steel we use for all our standard dies, and delivered it within 10 days. The cost was only marginally higher than a standard die. They have since ordered four more custom dies for different R&D projects.
If you need a non-standard die — whether it is a unique dumbbell shape, a tear specimen, a trouser-shaped specimen, or anything else — talk to us before assuming it cannot be done. We manufacture all dies in-house at our Specimen Cutters and Moulds facility in Thane. If it can be drawn, we can make it.
Common Mistakes Labs Make with Dumbbell Dies
In my years of working with QC labs across India, I see the same mistakes repeated:
- Using one die for both rubber and plastic: ASTM D412 Die C (rubber) and ASTM D638 Type I (plastic) are completely different. Die C has a 6mm narrow width. Type I has 13mm. Using the wrong die means your test is technically invalid. I have seen BIS audit rejections over this.
- Not replacing worn dies: Labs use the same die for years. By then, they have produced bad specimens for months. A single die costs a fraction of one failed audit.
- Cutting on the wrong surface: Always use a proper cutting pad or nylon board. Cutting on metal damages both the die and the base.
- Storing dies without protection: Cutting edges are precision-ground. Tossing dies into a drawer damages edges. Store individually in protective sleeves.
- Not checking specimen dimensions: Every tenth specimen should be measured with a micrometer. Takes 30 seconds, catches die wear before it ruins your data.
How to Order the Right Die: What to Tell Your Supplier
When you contact us to order a dumbbell cutting die, have these details ready:
- The testing standard: ASTM D638, ASTM D412, ISO 37, ISO 527, or your specific IS standard.
- The specimen type: Type I? Type IV? Die C? Die D? Do not just say “ASTM D638 die” — there are five types.
- Material you are testing: Rubber, rigid plastic, flexible film, leather?
- Material thickness: Determines whether you need standard-depth or deeper die.
- Press compatibility: What press do you use? If buying Finetech press + dies together, compatibility is automatic.
If you are not sure about any of these, just call me. I would rather spend five minutes on the phone helping you order the right die than have you receive the wrong one.
Final Thoughts
A dumbbell cutting die is one of the simplest tools in your lab. No electronics, no moving parts, no software. Just precisely shaped steel. But it sits at the very foundation of your tensile testing process. Every tensile strength value, every elongation-at-break number, every pass/fail decision starts with the specimen — and the specimen starts with the die.
Get the die right, and your results are reliable. Get it wrong, and nothing downstream matters — not the machine, not the software, not the operator’s skill.
I have included the complete dimension tables above for the standards most commonly used in Indian manufacturing. Bookmark this page. Share it with your lab technician. Print out the table for the standard you use most often and tape it next to your cutting press.
And if you need standard dies, custom dies, or a complete specimen preparation setup — dies, press, moulds, the whole package — we manufacture all of it in-house at our facility in Thane. No middlemen, no outsourcing, no waiting.
