Finetech Engineering

Vibration tester

  • Simulates real-world transport vibrations — road, rail, and handling conditions on a controlled lab platform
  • Adjustable frequency range: 2–6 Hz (120–360 CPM) — covers the critical transport vibration spectrum
  • Fixed amplitude of 25.4 mm (1 inch) — per IS 9000 and ASTM D999 requirements
  • Heavy-duty platform with side rails — securely holds individual packages or stacked unit loads
  • IS 9000, ASTM D999, ASTM D4169, and ISO 2247 compliant
  • Digital timer and frequency controls for precise, repeatable test cycles
Request a Free Quote

Overview

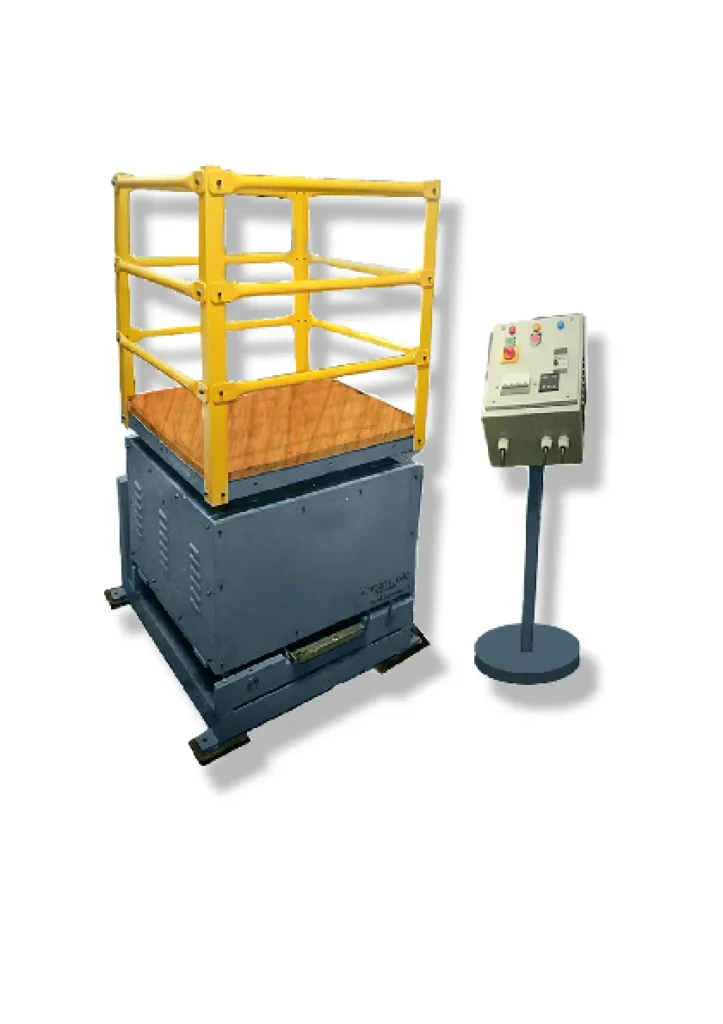

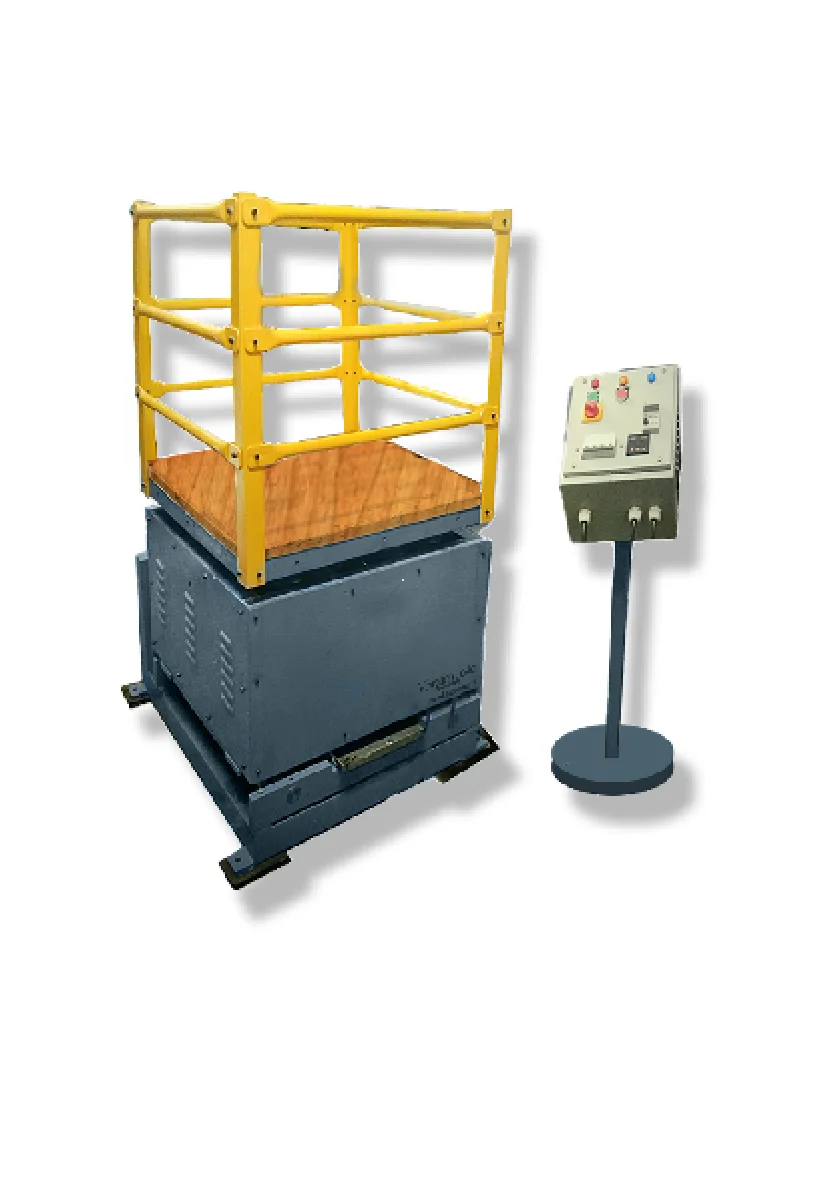

The Finetech Engineering Vibration Tester is a mechanical vibration table designed to simulate the vibrations that packaged products experience during transportation by road, rail, or air. Every product that is shipped — whether a corrugated box of moulded plastic parts leaving a Pune factory, a carton of pharmaceutical vials going from Thane to Chennai, or a pallet of FMCG goods on a cross-country truck — is subjected to continuous vibration throughout the journey. This vibration can cause contents to shift, rattle, compress, crack, or break if the packaging is not designed to absorb and dampen these forces.

The vibration table replicates these transport stresses in a controlled laboratory environment, allowing QC teams and packaging engineers to evaluate whether their packaging design provides adequate protection before the product ever leaves the factory. The table generates vertical sinusoidal vibrations at adjustable frequencies between 2 and 6 Hz, with a fixed amplitude of 25.4 mm (1 inch) — the range that captures the dominant vibration frequencies of truck beds, rail cars, and handling equipment. The package is placed on the vibrating platform and subjected to a specified duration of vibration, after which the package is opened and inspected for damage to the product and packaging.

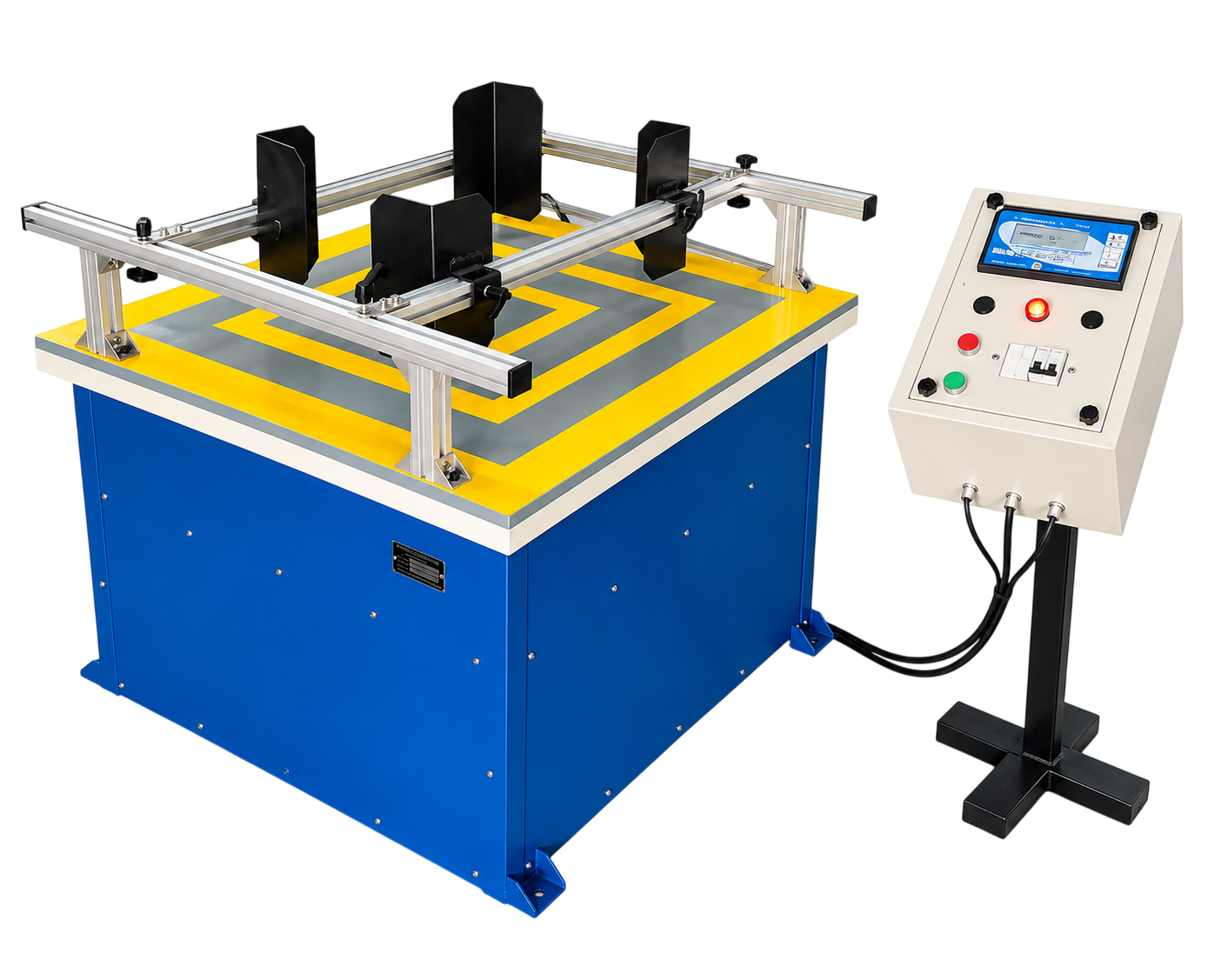

The Finetech vibration tester is built with a rigid MS steel frame, a cam-driven vibration mechanism for consistent amplitude delivery, side rails for safe specimen placement, and a digital control panel with frequency adjustment and cycle timer. It is designed for use in packaging QC labs, product development departments, and third-party testing facilities that need to validate packaging performance to IS 9000, ASTM D999, ASTM D4169, or ISO 2247 standards.

Why Vibration Testing Matters
What transport vibration does to packages:
Problem What Happens Industries Affected
Product settling Contents compress and settle, creating empty space. Loose items shift and collide. FMCG, pharmaceuticals, electronics, food
Abrasion damage Adjacent products rub against each other or against the packaging inner surface. Glass, ceramics, painted surfaces, consumer electronics
Closure failure Vibration loosens tapes, adhesives, staples, or interlocking flaps. Corrugated packaging, cartons, shrink-wrapped pallets
Fatigue cracking Repeated vibration cycles cause stress cracking in rigid plastic or glass containers. Bottles, vials, jars, moulded plastic housings
Label / print damage Friction from vibration smudges, wrinkles, or detaches product labels. Pharmaceuticals, food, consumer goods
Pallet instability Unit loads shift, lean, or collapse when vibration loosens stretch wrap or strapping. Palletised goods, warehouse distribution
Cushion degradation Foam or corrugated cushioning loses effectiveness after prolonged vibration. Electronics, fragile instruments, glassware
Applicable Standards
Standard Full Name Key Requirements
IS 9000 (Part V/Sec 1) Packaging — Complete, Filled Transport Packages — Vibration Test Fixed low-frequency sinusoidal vibration. Vertical motion. Specifies frequency, amplitude, and duration based on package weight and transport mode. The primary Indian standard for packaging vibration testing.
ASTM D999 Standard Test Methods for Vibration Testing of Shipping Containers Four methods: sinusoidal linear vertical (A1), rotary (A2), single container resonance (B), palletised load resonance (C). Covers filled shipping containers of any form, material, or size.
ASTM D4169 Standard Practice for Performance Testing of Shipping Containers and Systems Defines 18 distribution cycles simulating different transport modes (truck, rail, air). Vibration is one of several hazard elements — often references ASTM D999 or D4728 for vibration execution.
ISO 2247 Packaging — Complete, Filled Transport Packages — Vibration Tests at Fixed Low Frequency Sinusoidal vertical vibration at fixed frequency. Equivalent to IS 9000 vibration test section.
ISO 8318 Packaging — Complete Transport Packages — Sinusoidal Vibration Tests Using Variable Frequency Variable-frequency sweep vibration for resonance identification.
ISTA 1A / 2A / 3A International Safe Transit Association Test Procedures Distribution simulation test sequences that include vibration as a required element.
Specifications
Parameter Specification
Product Name Vibration Tester (Vibration Table)
Vibration Type Vertical sinusoidal (mechanical cam-driven)
Frequency Range 2–6 Hz (120–360 cycles per minute), adjustable
Amplitude 25.4 mm (1 inch) fixed
Platform Size Standard: 600 × 600 mm or 750 × 750 mm (larger sizes on request)
Maximum Load Capacity Up to 100 kg (model-dependent; higher capacity models available)
Drive Mechanism Motor-driven cam assembly for consistent amplitude generation
Timer Digital timer with auto-stop for preset test durations
Frequency Display Digital display showing current frequency in Hz or CPM
Platform Construction MS steel platform with vibration-damped bearing block suspension
Side Rails Adjustable side rails on both sides for secure specimen placement
Frame Construction Heavy-duty MS steel frame, powder coated, on rubber vibration-isolation feet
Power Supply 230V AC, single phase, 50 Hz
Motor AC motor with variable speed drive
Safety Features Emergency stop button, overload protection
Certification ISO 9001:2015 certified manufacturing
How the Vibration Test Works

Step 1: Test Planning

  • Identify the applicable standard: IS 9000, ASTM D999, ASTM D4169, ISO 2247, or ISTA
  • Determine the test parameters: frequency, amplitude, duration, and orientation
  • For IS 9000 and ASTM D999, parameters are specified based on package weight and transport mode



Step 2: Specimen Preparation

  • Use a complete, filled transport package as the test specimen — exactly as it would be shipped
  • Record the specimen details: package type, dimensions, weight, closure method, interior packing, and product description
  • Photograph or inspect the product and packaging before testing



Step 3: Test Execution

  • Place the package on the vibration table platform, positioned as it would be during transport (upright, on its base)
  • Secure the package using side rails if required (some test methods require unrestrained placement)
  • Set the frequency, verify the amplitude, and start the timer
  • Run the vibration for the specified duration (typically 30 minutes to several hours, depending on the standard and distribution cycle)



Step 4: Post-Test Inspection

  • Open the package and inspect the product for damage: cracks, chips, scuffs, settling, shifting, leakage
  • Inspect the packaging for closure failure, crush, abrasion, tape lifting, or deformation
  • Record all observations and photograph any damage
  • Assess against the acceptance criteria defined in your standard or customer specification
Vibration Testing + Drop Testing = Complete Transport Simulation

n real transport, packages face two primary hazards: continuous vibration (the entire journey) and sudden impacts or drops (during loading, unloading, and handling). A complete transport simulation protocol tests for both. Most standards (ASTM D4169, ISTA 3A) specify a sequence that includes vibration testing followed by drop testing.

Vibration Testing + Drop Testing = Complete Transport Simulation
  • Packaging validation for domestic and export shipments — corrugated boxes, cartons, crates, shrink-wrapped pallets
  • Product fragility assessment — determining the vibration sensitivity of products before packaging design
  • Packaging design optimisation — evaluating different cushioning materials, closure methods, and box configurations
  • Supplier qualification — verifying that packaging suppliers deliver boxes and pallets that survive transport vibrations
  • Export compliance testing — meeting ISTA, ASTM D4169, or customer-specific vibration requirements
  • Palletised load stability testing — evaluating stretch wrap, strapping, and stacking performance under vibration
  • Quality control batch checks — periodic vibration testing of packaged production batches
Industries Served
  • Plastic products — moulded parts, containers, bottles, caps, automotive components
  • FMCG and consumer goods — food, beverages, personal care, household products
  • Pharmaceuticals — vials, bottles, blister packs, medical devices
  • Electronics — PCBs, displays, instruments, consumer electronics
  • Glass and ceramics — bottles, jars, tiles, tableware
  • Automotive — spare parts, aftermarket components
  • E-commerce and logistics — validating packaging for courier/parcel shipments
  • Paper and packaging — corrugated box manufacturers testing their own products
Why Choose the Finetech Vibration Tester?

IS 9000 compliant as standard. Built to meet the Indian packaging vibration test standard that most domestic manufacturers and BIS auditors require. Also supports ASTM D999, ISO 2247, and ISTA protocols.

Mechanical cam drive for consistent amplitude. Unlike motor-imbalance designs that drift with load, the Finetech cam mechanism delivers a precise 25.4 mm amplitude regardless of the package weight on the platform. Every test cycle is identical.

Pair with the Finetech Drop Tester. Vibration and drop testing together cover the two primary transport hazards. Both machines from one manufacturer means consistent quality, single-source service, and bundled pricing.

Customisable platform sizes. Standard platforms (600 × 600 mm or 750 × 750 mm) suit most packages. Need a larger platform for palletised loads or oversized cartons? We build to your dimensions.

Calibration and AMC support. Professional calibration of frequency, amplitude, and timer accuracy, plus Annual Maintenance Contracts for scheduled servicing. Keeps your vibration tester audit-ready.

Our Products

Request a Free Quote

Customisation available

Common Questions

Frequently Asked Questions

Request a Free Quote
A vibration tester (vibration table) is a laboratory instrument that simulates the vibrations a packaged product experiences during road, rail, or air transport. It subjects a complete, filled package to controlled vertical sinusoidal vibrations at specified frequency and amplitude for a set duration. After the test, the package is opened and inspected for product damage, packaging failure, or content displacement. It is used to validate packaging design, qualify packaging suppliers, and ensure products arrive undamaged at their destination.
For domestic transport within India, IS 9000 (Part V, Section 1) is the primary standard for packaging vibration testing. For export shipments, your customer or destination market may require ASTM D999, ASTM D4169, ISO 2247, or ISTA protocols. If unsure, start with IS 9000 for Indian market compliance and add ASTM D4169 or ISTA 3A if exporting. The Finetech vibration tester supports all of these standards.
The Finetech vibration tester produces vertical sinusoidal vibrations with an adjustable frequency range of 2 to 6 Hz (120 to 360 cycles per minute) and a fixed amplitude of 25.4 mm (1 inch). This range covers the dominant vibration frequencies experienced during truck transport (typically 2–5 Hz), which is the most common and most damaging transport mode for packaged goods.
Test duration depends on the standard and the distribution cycle being simulated. IS 9000 specifies durations based on package weight and transport mode, typically ranging from 30 minutes to 2 hours. ASTM D4169 and ISTA standards define duration as part of a multi-hazard test sequence, often 30–60 minutes of vibration per test cycle. Your customer specification may also define a required duration. The Finetech vibration tester has a digital timer with auto-stop for precise, repeatable test durations.
Standard models handle packages up to 100 kg. For heavier loads or palletised unit loads, we offer higher-capacity models with reinforced platforms and more powerful drive systems. Contact us with your maximum package weight and we will recommend the appropriate model.
The vibration tester simulates the vertical sinusoidal vibrations that are the dominant hazard in all surface transport modes (truck, rail). Air transport vibrations typically involve higher frequencies and random profiles that require electrodynamic shakers (a different class of equipment). However, for most packaging validation, the mechanical vibration table covers the critical transport vibrations that cause the most damage — which are low-frequency truck vibrations in the 2–5 Hz range.
For comprehensive transport simulation, yes. Vibration simulates the continuous vibrations during the journey (which cause settling, abrasion, fatigue, and loosening). Drop testing simulates the sudden impacts during loading, unloading, and handling (which cause crush, puncture, and breakage). Most packaging performance standards (ASTM D4169, ISTA 3A) require both vibration and drop testing as part of the test sequence. Finetech manufactures both machines.
Yes. The vibration tester should be calibrated periodically to verify that the frequency, amplitude, and timer are within tolerance. Finetech offers calibration services with certificates, and AMC plans that include regular calibration checks. This ensures your test results are valid and audit-compliant.
